Phase 2. Creating bombers

In the previous phase we created a new model, populated it with facilities, defined animation shapes for the facilities, added 3D view and camera to observe the running model and finally added protected area.

In this phase we will add bomber aircrafts to our model, define their behavior and mission.

Let us start with creating a new population of agents that will represent the bombers.

Create a new agent type

  1. Drag the  Agent element from the  Agent palette onto the  Main diagram. Place it nearby the  buildings population to the left of the model animation.
  2. Click Population of agents. You will be taken to the next step.
  3. Specify Bomber in the Agent type name field on the third step of the agent wizard. Click Next.
  4. Choose the Bomber animation shape in the Military section. Click Next.

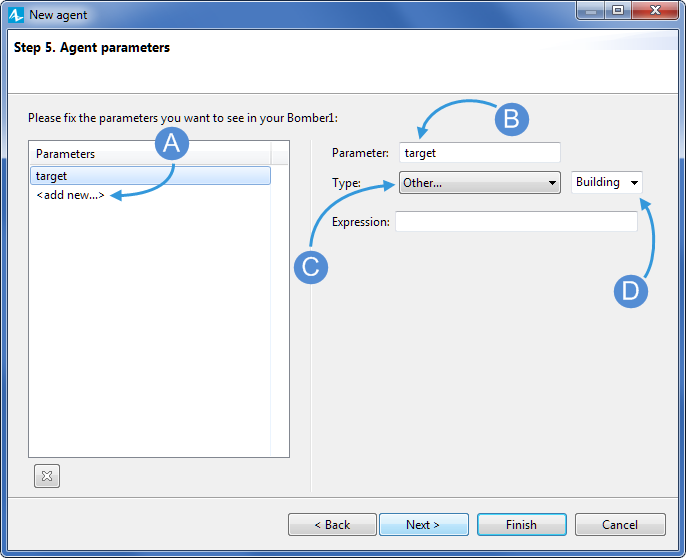

  5. Define the population’s parameter:
    • Click add new... to create a parameter.
    • Type target into the Parameter field.
    • Set Type to Other (additional drop-down list will appear next to it).
    • Select Building from the additional drop-down list of the parameter’s type (This will be the target building in the bomber mission).

    Click Next.

  6. Select the Create initially empty population, I will add agents at the model runtime option.
  7. Finally, click Finish.

Now we will define the coordinates of the bombers' initial location.

Define initial location

  1. Click the  bombers population element to open its properties.

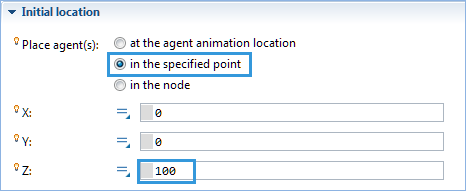

  2. Navigate to the Initial location section of the element’s Properties, set its Place agent(s) parameter to in the specified point to manually specify the point of appearance and then type 100 into the Z coordinate’s field to specify the altitude at which the bombers will be flying into the scene.

The next step is to define the velocity of the aircraft. It is done right here, in the same Properties view, just above the Initial location section.

Define the velocity of the aircraft

  1. Navigate to the Dimensions and movement section and set the Initial speed parameter to 600, then click the speed units drop-down menu to the right of it and select kilometers per hour.

Now that we have created bombers and defined their animation, initial location and target, we can move on to create the initial version of their behavior using the statechart.

Once created, the bombers will be heading towards the buildings (it is set by the target parameter). We will now define the further behavior, which will make the bombers gradually get to a lower altitude and then return to the initial point where they will delete themselves from the model.

Create the behavior defining statechart

  1. Double-click  Bomber in the Projects view to open its diagram.
  2. Switch to the  Agent palette to use its statechart section.

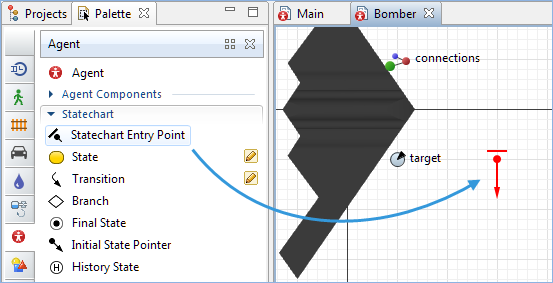

  3. Drag the  Statechart Entry Point element to the graphical editor of the  Bomber agent.

  4. Double-click the  State element to activate the drawing mode and draw a state rectangle below the previously drawn  Statechart Entry Point.
  5. Name it ToTarget and drag it up to the entry point until you see the green dot indicating that the two elements can be connected.

    You can alternatively simply click and drag the  State element from the palette directly to the  Statechart Entry Point element located on the  Bomber diagram. The automatically drawn element can be later resized if needed.

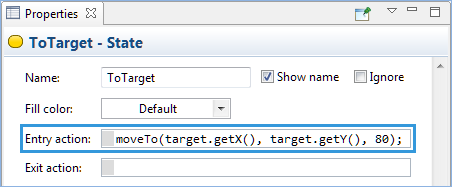

  6. Modify the Entry action field in the Properties view of the  ToTarget state. Type in the following code to define the coordinates of the bombers’ location. By specifying the code we will define the altitude different from the one specified in the Initial location section. It will make the bombers get to a lower altitude on their way to the targets, which are represented in our case by the buildings.
    When typing Java code, use Code completion master, accessible by clicking Ctrl + space (macOS: Alt + space) in the code field. It provides you with the list of available functions and model elements, so you can simply choose the required item from the list and avoid mistypes when referring to it.

  7. Drag the  Transition element to the  ToTarget state on the   diagram and connect them. Then navigate to its properties and set the Triggered by parameter to Agent arrival.

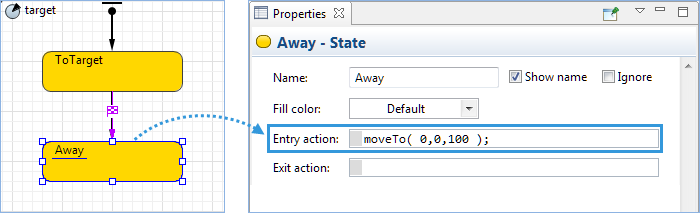

  8. Now drag another  State element to the agent diagram and connect it to the  Transition element. Name it Away. Then navigate to its Properties view and type the following code into the Entry action field, which will make the bombers get back to their previous altitude once they have reached their targets.

  9. Drag another  Transition element to the agent diagram and connect it to the  Away element. Then navigate to its properties and set the Triggered by parameter to Agent arrival. The two transition elements on the statechart diagram must be identical.
  10. Finally, drag the  Final State element to the agent diagram and connect it to the last added  Transition element. Then navigate to its Properties view and type the following code into the Entry action field, which will remove the bombers that have completed all the steps of this statechart.

We have completed the behavior defining statechart. As you can see we call the moveTo() function in the On enter field of both states to initiate movement of the agent. The transition from one state to another is triggered by the agent arrival. This pattern is very common in the agent based models.

The next step is to create the mission assignment. We will do it with the help of the  Event element.

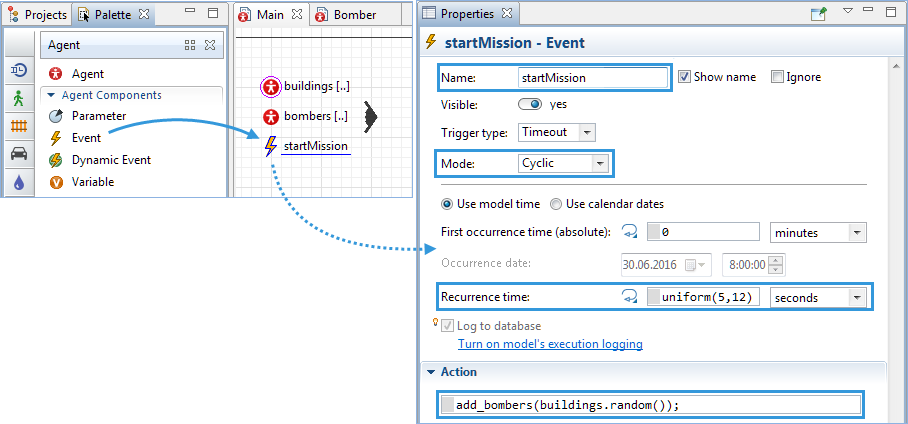

Program mission assignment

  1. Switch to the  Main diagram of the top level agent.
  2. Drag the  Event element from the Agent palette to the  Main diagram and place it beside the agents populations.
  3. Navigate to its Properties and perform the following changes:
    • Name it startMission.
    • Set the Mode parameter to Cyclic.
    • Set the Recurrence time parameter’s time units to seconds and type uniform(5,12) into the parameter’s field.
    • Type add_bombers(buildings.random()); into the field of the Action section.
    The cyclic event periodically looks for a building without a bomber already flying to it. We use iteration across the agent population twice: in the outer loop we iterate across buildings, and in the inner loop we iterate across bombers. If such a building is found, we create a new bomber agent and assign the building to the bomber as the target (as long as the  Bomber agent has one parameter target of type  Building, AnyLogic generates a constructor with that parameter).

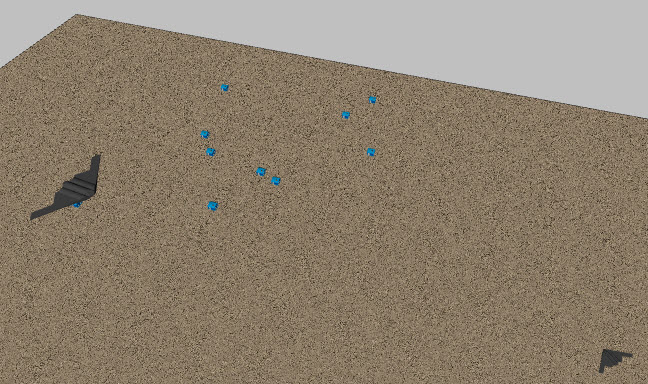

Finally, we can run the model to observe the flight of the bombers live.

Upon creation, a bomber takes direction to the target building, makes an “instant u-turn”, and heads back to (0,0). So far, the bombers use straight line trajectories — this is assumed by the moveTo( x, y, z ) function. We will further draw the 3D “escape trajectory” for the return route and set the bombers to follow that trajectory on their way back. We will use another version of the method: moveTo( main.exitNode );.

Now we will create escape route that the aircrafts will be following to avoid being hit by a missile.

Draw the 3D escape route

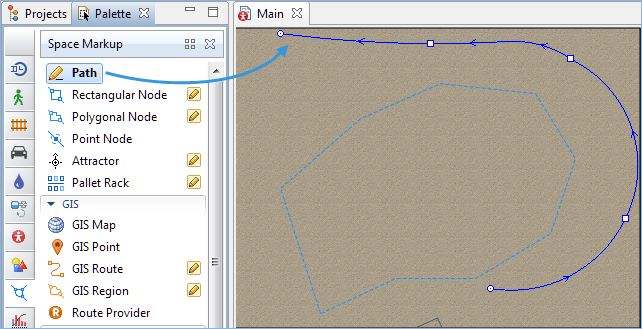

  1. Open the Space Markup palette, double-click the  Path element to activate the editing mode and draw a path, as shown in the figure.

  2. Navigate to its properties and name the path escapeRoute.
  3. Set the Z parameter of the Position section to 100 (this will be the base Z-coordinate of the polyline).

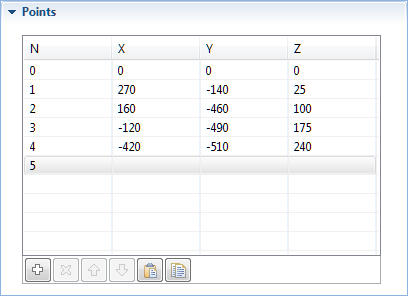

  4. Open the Points section of the path properties and modify the individual Z coordinates of the points approximately, as shown in the figure. The idea is to have the initial section of the path at about the same altitude as the bomber attack altitude.

  5. Add  Point Node from the Space Markup palette to the end of the path, make sure the node connects to the path. Name it exitNode. Set its Z parameter of the Position and size section to 340.
  6. Open the diagram of the  Bomber agent, click the Away state to navigate to its properties and change the Entry action to: moveTo( main.exitNode );
    We need to put the prefix main before the exitNode because this graphical object is located not inside the  Bomber agent, but one level up, in  Main.

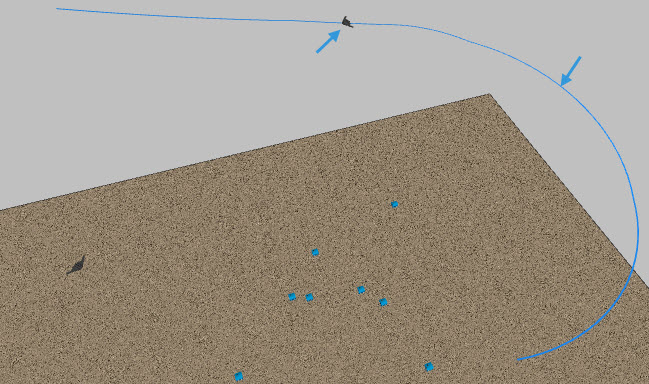

Run the model. See how the bombers return to the base using the defined by the path route.

The  escapeRoute is visible at runtime. We will now set the Visible parameter of both the  escapeRoute and the  exitNode to no, to hide both of them.

Hide escapeRoute during runtime

  1. Click the  escapeRoute to select it.
  2. Navigate to its Properties view and click the Visible parameter’s toggle button to switch the visualization state to no. The  escapeRoute will not be visible during runtime now.

In the same way hide the  exitNode.

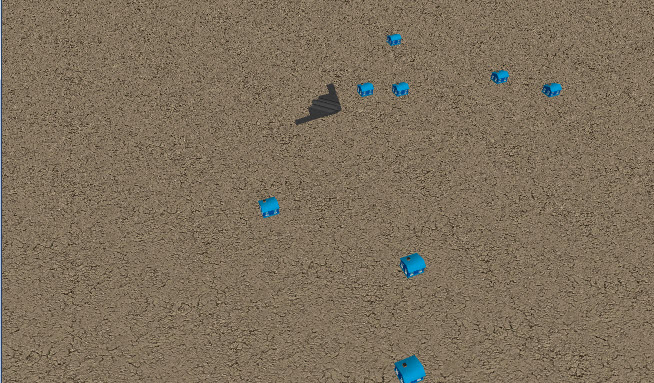

Run the model. No odd elements are present in the scene now.

We have completed the second phase of the Air defense system tutorial.

Demo model: Air Defense System — Phase 2 Open the model page in AnyLogic Cloud. There you can run the model or download it (by clicking Model source files).
