Variables view

The Variables view displays information about the variables associated with the stack frame selected in the Debug view. When debugging a model, variables can be selected to have more detailed information be displayed in the Detail pane. In addition, Java objects can be expanded to show the fields that variable contains.

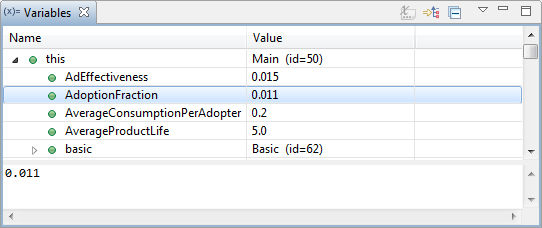

The Variables view. The detail pane is the area at the bottom of the view displaying text.

To show or hide the Variables view

  1. Choose View > Variables from the main menu.

The Variables view toolbar provides a set of toolbar buttons that allow to customize the view:

Command Action
 Show Type Names

Defines whether variables' type names are shown in the view.

 Show Logical Structures Defines whether logical structures are shown in the view.
