Graphical editor

Each agent type has a graphical diagram associated with it. The graphical diagram is the place where you define the structure of your agent type. It plays several roles:

  • Defines the interface of the agent.
  • Defines a presentation and icon for the agent type using presentation shapes and controls. Graphical editor links shape properties to agent data.
  • Defines behavior elements, such as events and statecharts.
  • Defines the embedded objects and their interconnection.

To open the graphical editor for an agent type or experiment

  1. Double-click the agent type/experiment in the Projects view.

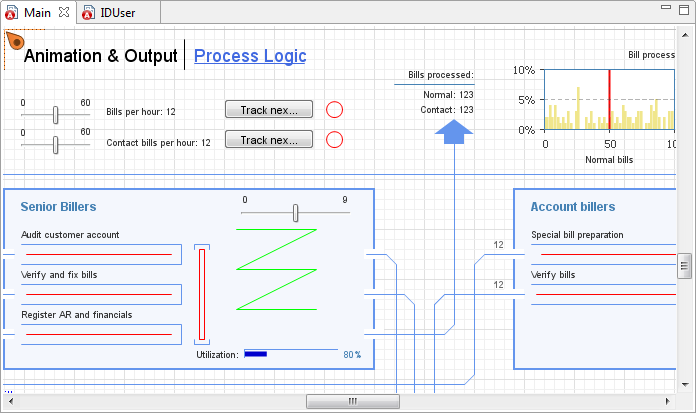

    Graphical editor
